Eletrodeless lamp
Is honored as the 21st century green illumination domain beautiful high frequency Eletrodeless lamp, by its high energy conservation, the high energy of light's use efficiency, the high color rendering property, the long life, dodge, the real environmental protection without the frequency, not to fear that the vibration, the few maintenances, may start immediately, approach our daily life. in Edison invented the carbon incandescent lamp after 1879, the lighting techniques then entered for one new time. Review the 20th century illuminated the history, the new light source emerged one after another incessantly, has the halogen tungsten lamp, the fluorescent lamp, the high-pressured sodium lamp, metal halide lamp , the compact fluorescent lamp and , however, had “the green illumination” truly,. The Electrodeless Discharges Lamp, it is based on the fluorescent lamp gaseous discharge and high frequency electromagnetic induction two knowledge principle union one kind of new light source .

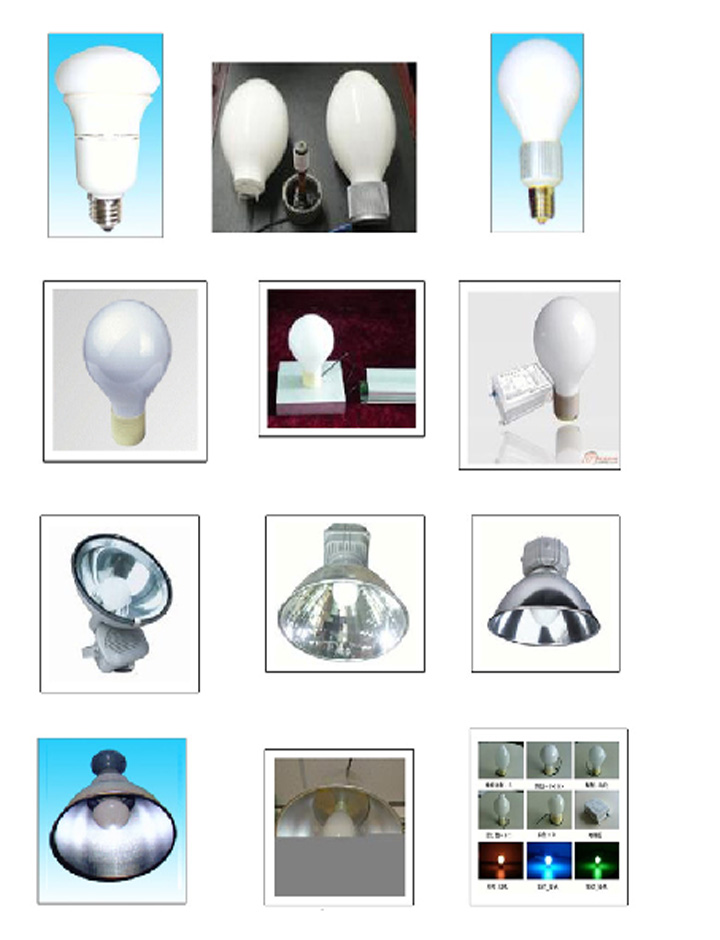

Electrodeless lamp map

First, general rule
1.1 regarding the illumination, should act according to the visual request, the work nature and the environmental condition, selects the appropriate degree of illumination, adopts the suitable brightness distribution and the illumination uniformity, reduces the nonessential shadow, the visual space is clear; Correct selects the light source and the lamps and lanterns, reduce glare, requests to dodge without the frequency, with reduces is agitated restlessly with.
1.2 select the light source reasonably, reduces the light heat and the ultraviolet radiation has the disadvantageous influence to the human and the object; processes the light color and the color rendering property index choice causes its coordinated harmonious. Creates the harmonious relaxed environment, lets the light environment life feel comfortable.
1.3 in choice light source time, should consider the environmental protection and the energy conservation request; Simultaneously and selects the life long light source, reduces as far as possible trades lamp's expense and is advantageous to the production execution; Certainly we could not stress merely in the energy conservation have neglected energy conservation illumination another primary mission---The improvement vision environment, improves the illumination quality and reduction environmental pollution;
1.4 lightingme’s eletrodeless lamp have conserve energy (85Lm/W), long life (≥60000 hour), environmental protection, high color rendering property, infrared and ultraviolet ray few and characteristics; It also has the characteristic which the true non-frequency dodges. may meet above requirements, is one kind of very appropriate lighting source.
1.5 superficial craft processing:
* uses the FR-4  double-sided PCB, is advantageous in primary device's fixed.
* uses the completely automatic double wave ridge soldering tin craft.
* The lamps use original installation import the aluminum alloy material.
*The radio-frequency alternator outer covering uses the aluminum alloy material, is advantageous in the radiation.
* When and lamps necessary use, the coupler and the radio-frequency alternator add the aluminum alloy material, are advantageous for the radiation together, enhances life.
second, Eletrodeless lamp's principle of work

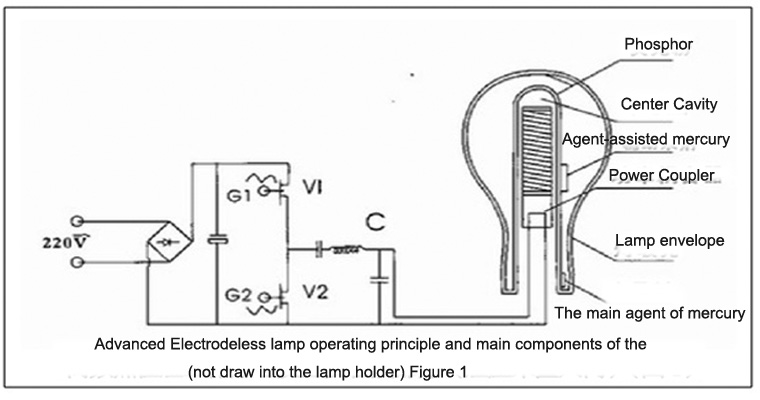

2.1 Basic principle
Eletrodeless lamp which based on the fluorescent lamp gaseous discharge and the high frequency electromagnetic induction two people the high frequency eletrodeless lamp is knows very well the principle which unifies. Because it does not have the conventional electro-optic light to filament or electrode, therefore eletrodeless lamp; Usually the low-pressure gas electric discharge high frequency eletrodeless lamp uses the operating frequency is 2.5~3.0MHz, i.e., The eletrodeless lamp's operating frequency the operating frequency which compared to the ordinary incandescent lamp and the daily use's inductance type fluorescent lamp, and metal halide lamp, high-pressured sodium lamp (50Hz) is higher than 50,000 ~ 60,000 times, compared to conserves energy the lamp or the electronic ballast operating frequency ordinary (30~60KHz) is higher than approximately 250 times. the chart (1) is the low-pressure gas high frequency eletrodeless lamp principle of work schematic drawing, operating frequency 2.65MHz.
2.2 high frequency eletrodeless lamp's types
The high frequency eletrodeless lamp mainly has the following four kinds
2.2.1 low-pressure gas high frequency eletrodelss lamp (will make key narration): The low pressure mercury and the noble gas mix discharge the ultraviolet radiation hit which produces to soak the wall three-band fluorescent power to transform the visible light. the operating frequency is 2.2~3.0MHz, at present the maximum work rate is 165W, light effect 63~76Lm/W.
2.2.2 microwave lamps: By the magnetron microwave generator through the microwave resonant cavity, the stimulation has specific auxiliaries the quartz ball to soak, in the quartz soaks by 10 atmospheric pressure (atm) the sulfur vapor member radiative generation white light, operating frequency 2450MHz, the power reaches 1000W, light effect 120Lm/W.
2.2.3 ring-like fluorescent lamp type electromagnetic induction lamp, operating frequency 250KHz.
2.2.4 metal halogenide eletrodeless lamp, operating frequency 13.56MHz, still in the research and development stage, had not had at present product going on the market.
2.3 high frequency eletrodeless lamp product technical superiority.
2.3.1 enhancement illumination quality, protects eye health
* high frequency does not have the twinkle, will not create the eye strain, will protect the eye health;
 * the close sunshine light, the light is gentle, the color rendering property is good, presents is       illuminated the thing natural luster;
* brightness is high, glare lowly, increases the illumination comfortableness;
* in the light which sends out, the visible light proportion is high, the visual effect is good.
2.3.2 ultra long lives, protect user benefit
* the eletrodeless lamp does not have the electrode, not to use the tungsten wire, therefore the life ultra is long;
* selects the high quality tri-phosphor fluorescent powder and the import primary device necessary radio-frequency alternator, guarantees the entire lamp ultra long life.
2.3.3 save lighting electricity, builds comfortable working conditions
* in same luminous flux output situation, eletrodeless lamp use compared to ordinary incandescent lamp province electricity above 80%;
* the product has above 99.5% to be possible the returns-ratio, the use solid amalgam, meets the national environmental protection requirement completely;
* the instantaneous start and starts again.

2.4 primary device selections:
 * electrolysis electric capacity selects the domestic first brand Guangdong fenghha advanced technology Co.,ltd.
 * current-limiting inductor uses magnetism link which the American micro metal company produces.
 * switching valve uses the American Fairchild Semiconductor Company's MOS tube.
 * transformer uses the Japanese TDK magnetic core.
* the PCB uses the domestically produced first-class FR-4 double kneading board.
 * uses the American ST Corporation's diode.
 * uses Motorola MOT Corporation's IC.
  Third, traditional metal halide lamp and eletrodeless lamp performance reference table
Traditional metal halide lamp
The power factor is quite low, inductance ballast oneself loses high, the power factor only then 0.3-0.5, are illuminated the object the color appears glare obsoletely in a big way, the color is not bright lacks vividly compares with the sunlight has the obvious deviation, traditional metal halide lamp life generally is 8000-10000 hours, 1. has the frequency to dodge, has the injury to the vision, the eye easy weary painfully swollen. 2. the ballast has the power frequency noise, the heat dissipating capacity to be big, the temperature is high, the line gets older quick 3. to contain the mercury to measure 6-9mg, is big to the environmental pollution, to the human body radiation intensity, the light fades the time to be short.
Eletrodeless lamp
The power factor is quite high, achieves above equally 0.95, is illuminated the object color to be bright, to be bright, the close sunlight's illuminating effect, the eletrodeless lamp's life is above the >100000 hour, 1. dodges without the frequency, the close natural illumination causes the work, to study the place and the outside basic agonic, the eye not easy weary. 2. the non-power frequency noise, the power loss is low, the heat dissipating capacity is low. 3. contains the mercury to measure <3mg, does not have the radiation basically, realizes the true green environmental protection.
Explains
 Traditional metal halide lamp the power is about 400W the eletrodeless lamp's power is about 135W, traditional metal halide lamp colored index Ra≤85 the eletrodeless lamp's colored index Ra≥90, the  eletrodeless lamp's service life is  metal halide lamp 10 time of above
Fourth, metal halide lamp and eletrodeless lamp's energy conservation material analysis
4.2 Advantage and Disadvantage comparison tables:
with according to above tabular computation:, metal halide lamp the electricity consumption high (consumes electrode to be big, enhances operation cost), one year must replace a time light source (200 Yuan/only/years), the light source burns out (later period to maintain cost frequently to be high, and influence production). the eletrodeless lamp, may save the electrical bill 142963.2 Yuan every year (0.8 Yuan/), every year may save the replacement maintenance cost 16000 Yuan, the long life, in five years the maintenance rate is low, the light source quality is stable.
Fifth, eletrodeless lamp's advantage
*highly effective energy conservation:power factor is bigger than 98%,radiates the similar   luminous flux, consumes the electricity is only the incandescent lamp 1/4~1/5, the luminous intensity can achieve 65LM/W,85W-150W eletrodeless lamp to select the special-purpose   lamps to be possible to act according to different to replace 150W-400W high voltage
 sodium lamp sodium lamp and metal halide lamp.
* ultra long life: The eletrodeless lamp does not have the filament and the electrode, drove that the source outside the light bulb, causes own calorific capacity is only the high-press ured sodium lamp, below metal halide lamp  1/4, the light bulb life only decided that in  the luminous powder organic decay, above many merits causes the eletrodeless lamp's life  to amount to above 60000 hours (to use approximately 10 years normally), is incandescent lamp's 60 times, halogen lamp's 20 times, sodium lamp's 15 times, metal halide lamp 10    times.
* dodges without the frequency: Uses high frequency (2.65MHZ) to drive lights a lamp,   the light is extremely stable, does not have the stroboscopic effect, protects the eye.
* high color rendering property: the high luminance, glare, the light gently, to present     lowly is illuminated the object the natural luster, the colored index to be possible to    reach 82.
* the instant starts starts again: Starting time
* adaptability to environment: The working conditions temperature - 20℃~50℃, the input  voltage scope fluctuates in 97V~270V in the , the light bulb starts as usual and works,  and the output luminous flux is constant.
* green environmental protection: The special electromagnetic compatibility design, the     independent development's radio-frequency interference filter, eliminated to the electrical  network and the environmental pollution, is the green light source.
 * installment may the compatibility: May install in the random position, is not limited.
* low temperature: Light bulb surface temperature <110℃. * wide voltage: In the 160V-265V voltage range, the eletrodeless lamp may the normal work.
* visible light proportion is high: In sends out in the light, the visible light proportion    reaches above 80%, the visual effect is good. the
* electrical specification is fine: The power factor is high, the current harmonics is low,   the permanent voltage power supply, outputs the constant luminous flux.
Seventh, the eletrodeless lamp saves the energy data contrastive analysis:
* Take the 85W eletrodeless lamp as the example, is equal ordinary lamp 2 hours uses electricity one degree in ordinary lamp 500W brightness the 500W, the 85W eletrodeless lamp 12 hours uses electricity one degree contrast electricity saving 5.88 time of.
* by ten thousand hour computation: the 500W ordinary lamp uses electricity 5000 degrees, the 85W eletrodeless lamp uses electricity 833.3 degree contrast electricity saving 4166.7 degree
* by each degree 0.8 Yuan computation: ordinary lamp ,eletrodeless lamp 5000 ×0.8 Yuan =4000 Yuan 833.3 degree ×0.8 Yuan =666.64 Yuan the contrast saves Renminbi 3333 Yuan.From the actual test material and the theoretical analysis, we may know that the eletrodeless lamps and  have the obvious energy conservation effect! Moreover, the eletrodeless lamp is the long life exempts the maintenance product, does not need to spend again purchases metal halide lamp  each all sorts of spare parts, this in the man-power, the material maintenance has saved not the small expenditure. This also advantageous production's execution, guarantees the productive plan completion. metal halide lamp starts needs preheating, if middle power failure, then needs to cool first and preheating only then can start; But the eletrodeless lamp may the real-time start and starts again, does not need preheating not to need to cool. This product's quality obtained the general Measure unit to be used's approval.
